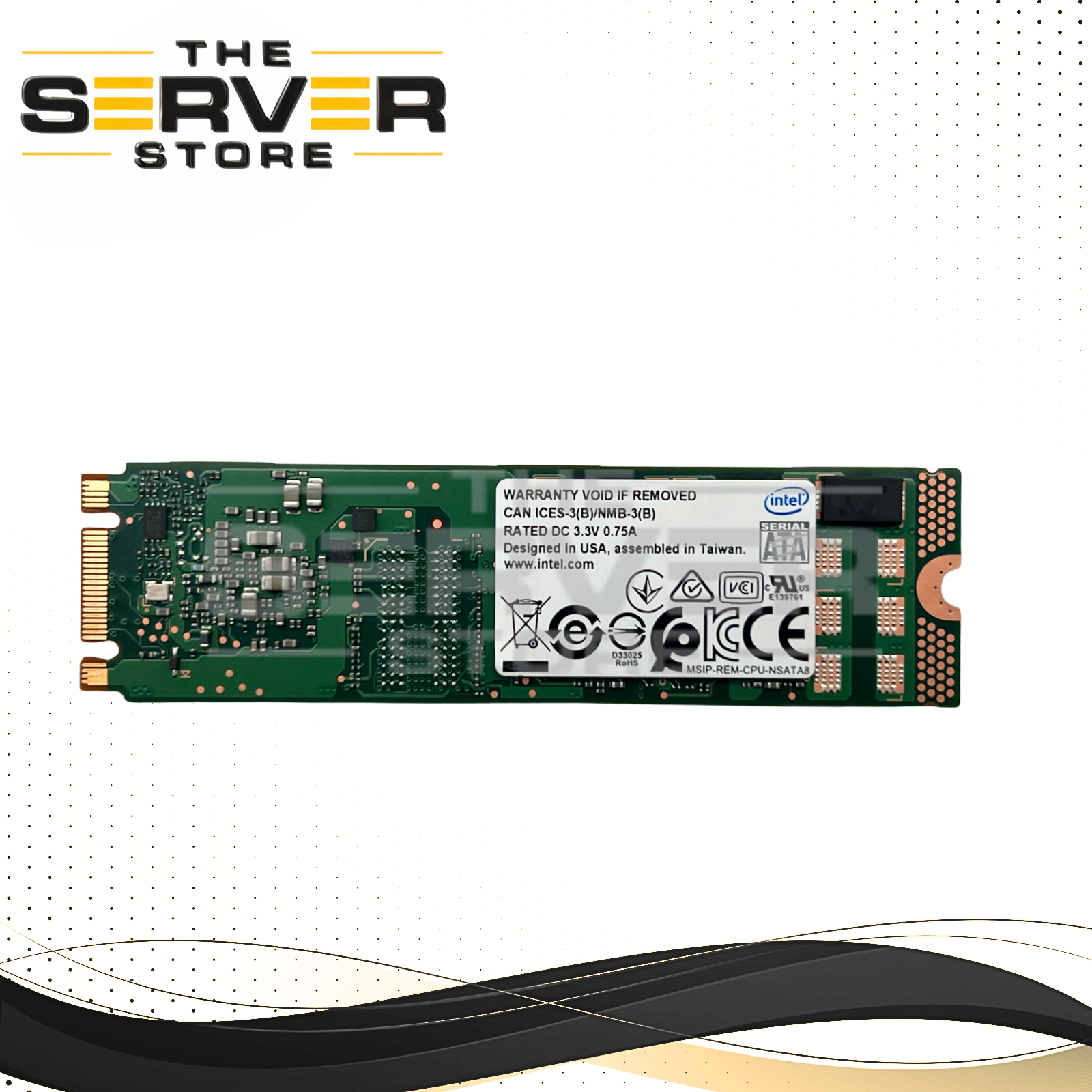

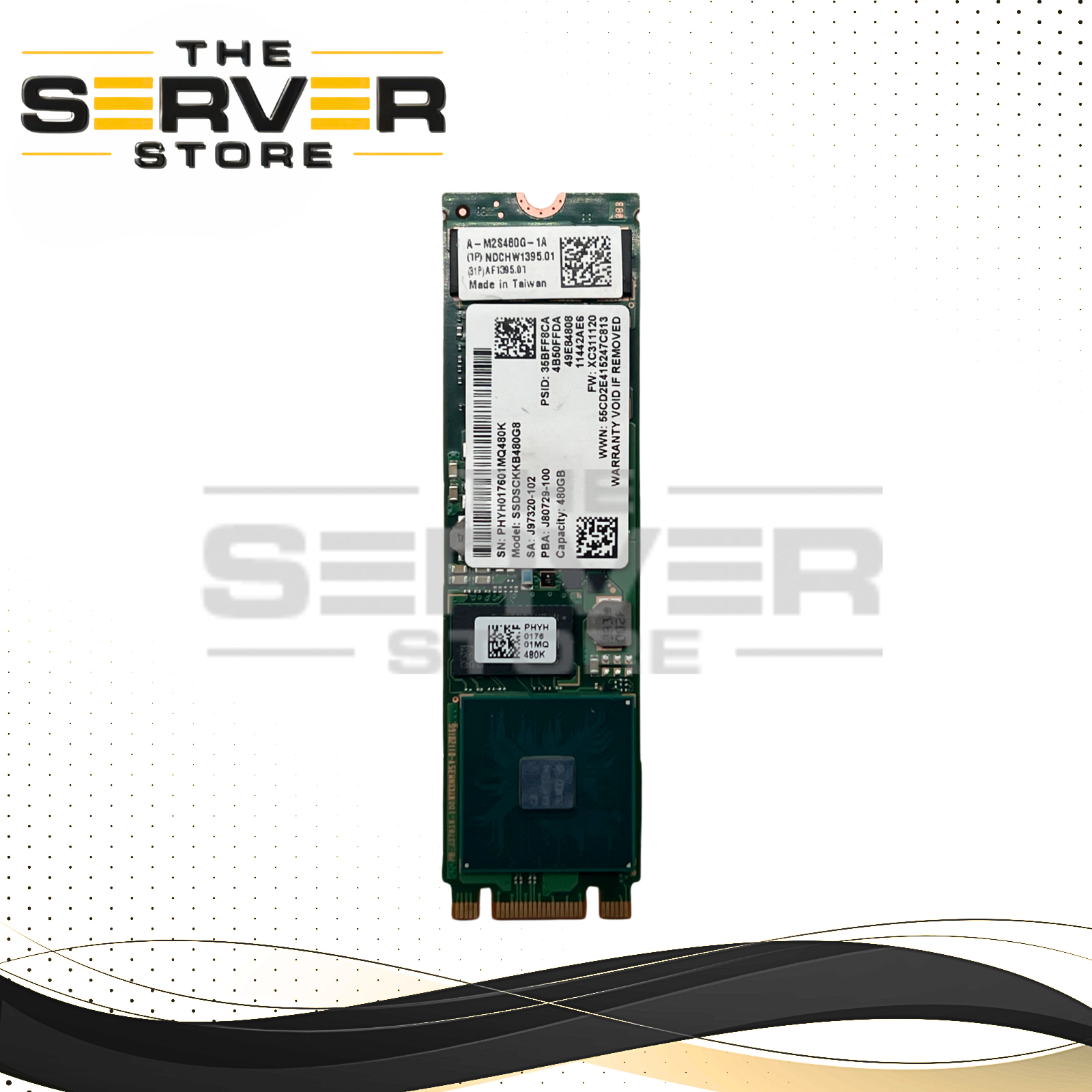

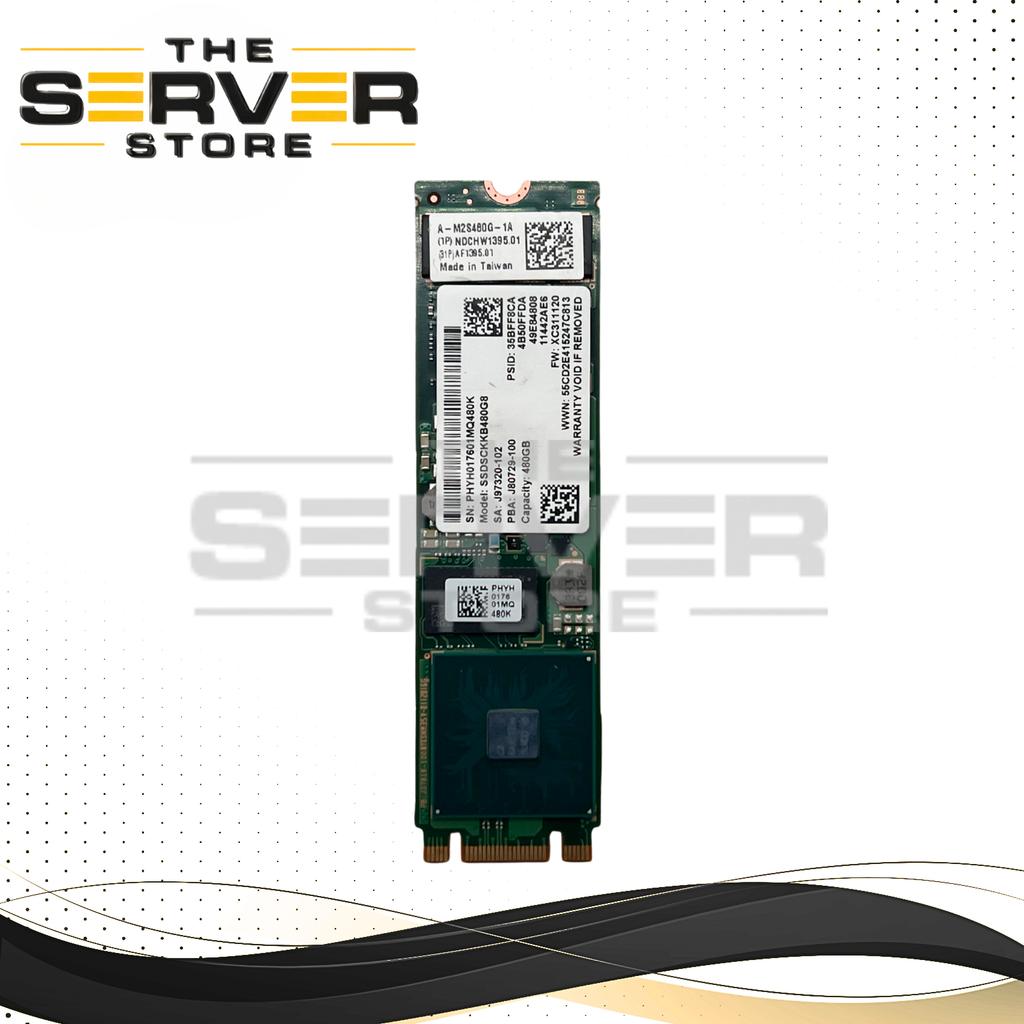

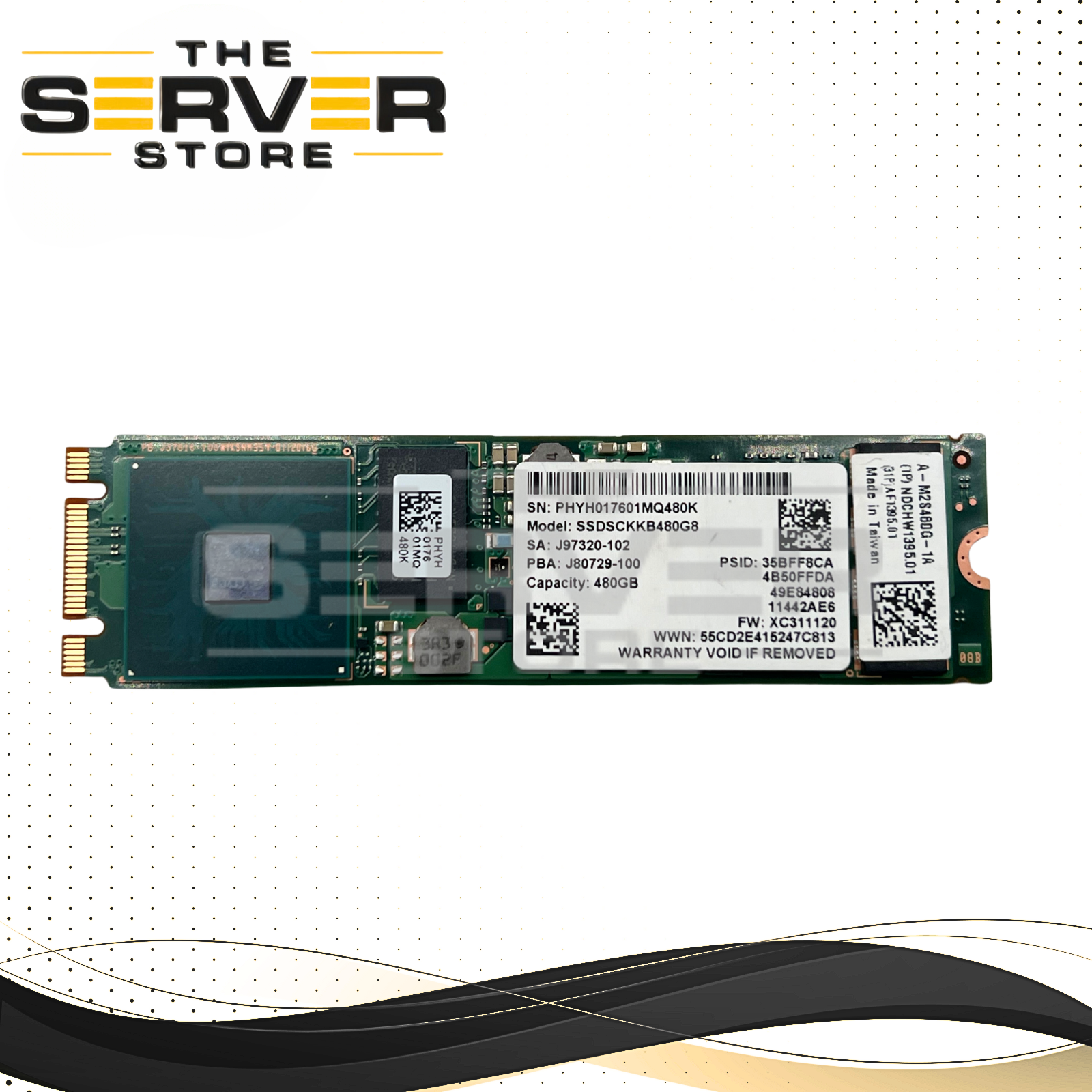

Intel 480GB SATA 6G 2280 M.2 SSD D3-S4510 Series – SSDSCKKB480G8
The Intel 480GB SATA 6G 2280 M.2 SSD D3-S4510 Series (SSDSCKKB480G8) is a read-intensive, enterprise-class solid-state drive built for server and workstation environments.
Designed with 3D TLC NAND flash memory and a SATA 6Gb/s interface, the D3-S4510 delivers consistent performance, strong endurance, and advanced data protection features ideal for business-critical applications.
Key Specifications
| Attribute | Detail |
|---|---|
| Capacity | 480GB |
| Form Factor | M.2 2280 (22mm x 80mm) |
| Interface | SATA 6Gb/s (SATA III) |
| NAND Flash Type | 3D Triple-Level Cell (TLC) |
| Sequential Read | Up to 555–560 MB/s |
| Sequential Write | Up to 275–480 MB/s |
| Random Read (4KB) | Up to 91,000 IOPS |
| Random Write (4KB) | Up to 18,000 IOPS |
| Endurance | Up to 2 DWPD or 1.5 PBW |
| MTBF | 2 Million Hours |
| Encryption | Hardware-based AES 256-bit |
| Active Power | Up to 3.0W |
| Idle Power | Up to 1.0W |
| Shock Rating | 1000G / 0.5ms (operating & non-operating) |
| Vibration (Non-Operating) | 3.13G |
Key Enterprise Features
-
Enhanced Power Loss Data Protection
-
End-to-End Data Protection
-
Temperature Monitoring & Logging
-
Optimized for read-intensive workloads
-
Enterprise reliability and firmware stability
Ideal For
-
Data center boot drives
-
Virtualization environments
-
Cloud infrastructure
-
Enterprise read-heavy applications
-
Workstations requiring consistent SATA performance
⚠ Please confirm your system supports M.2 SATA (not NVMe) before purchasing, as this drive uses the SATA interface despite the M.2 form factor.
